Warning This page describes a function that has not yet been publicly released, or has been released in beta / preview quality. Subject to change.

Pay with Resco functionality makes field service visits complete by enabling technicians to collect payment directly at the place of work or visit. You can now get paid for the service, order, or issued invoice right on the spot, directly with the Resco mobile app.

The function is currently available for Dynamics. After successful service, say repair of a dishwasher, the technician is able to create an invoice from work order on their mobile device. On the invoice form, it is possible to collect payment for the service. The payment command generates a unique online payment link which customer can either scan from technician's and pay on their own device or get the link via email, open it and pay online.

With release 14.3, we've integrated a payment processing engine from Stripe.

Pay with Resco in action.jpg

Integrate with Stripe

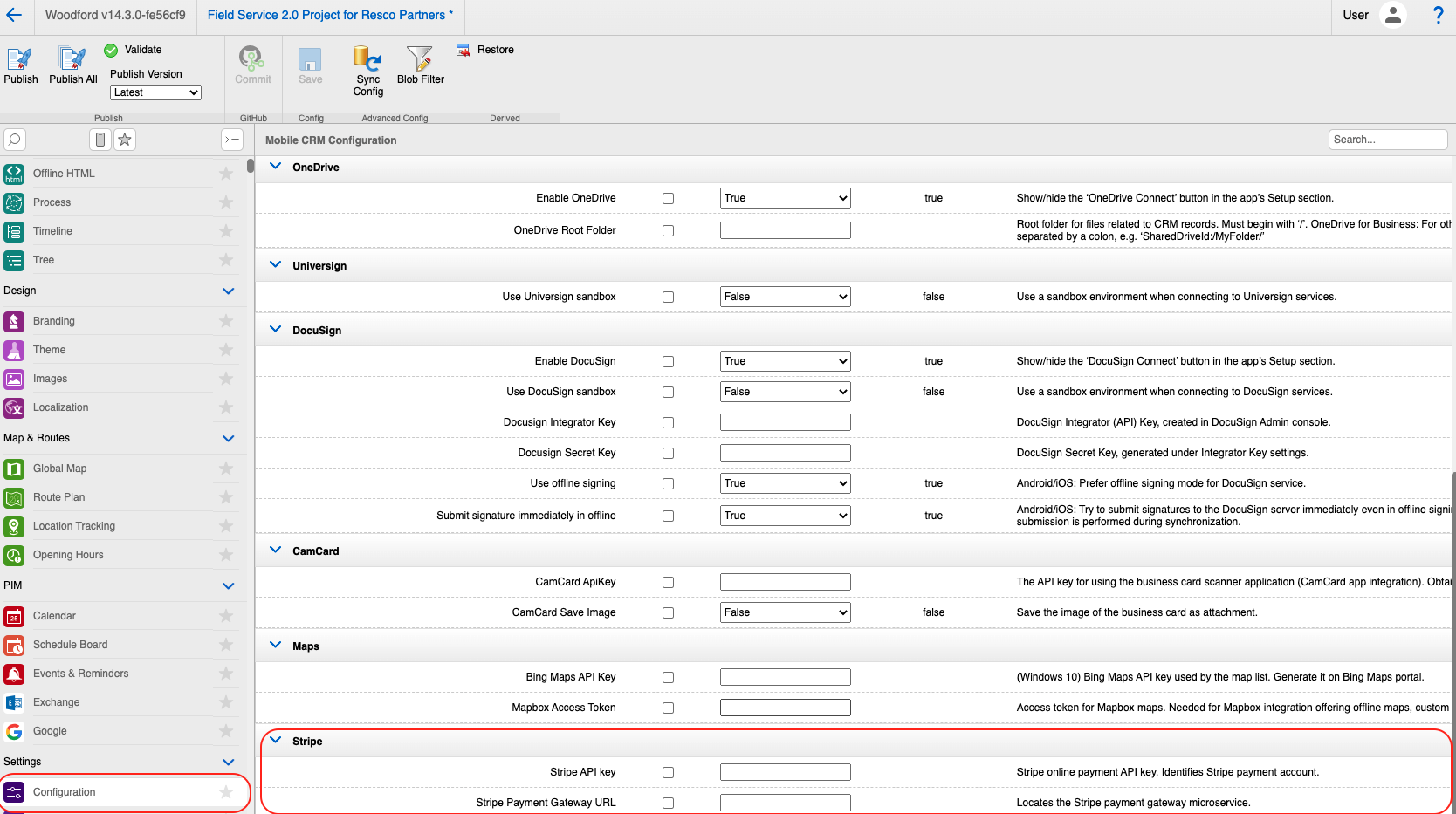

In order to make it work, you need a Stripe account. You can register at their website. Then, enter the Stripe API key to your app project configuration in Woodford.

The Stripe Payment Gateway URL parameter is optional. It is used if you want to install the gateway on your own Azure.

Configuration stripe.png

Add form commands

There are two new commands available in the Woodford solution for Dynamics:

  • Create Invoice on the Work Order form
  • Collect Payment on the Invoice form.

(We've already had a Create Invoice command on the sales entity Order form.)

You need to add these commands on the respective forms in order to make the payment functionality available.

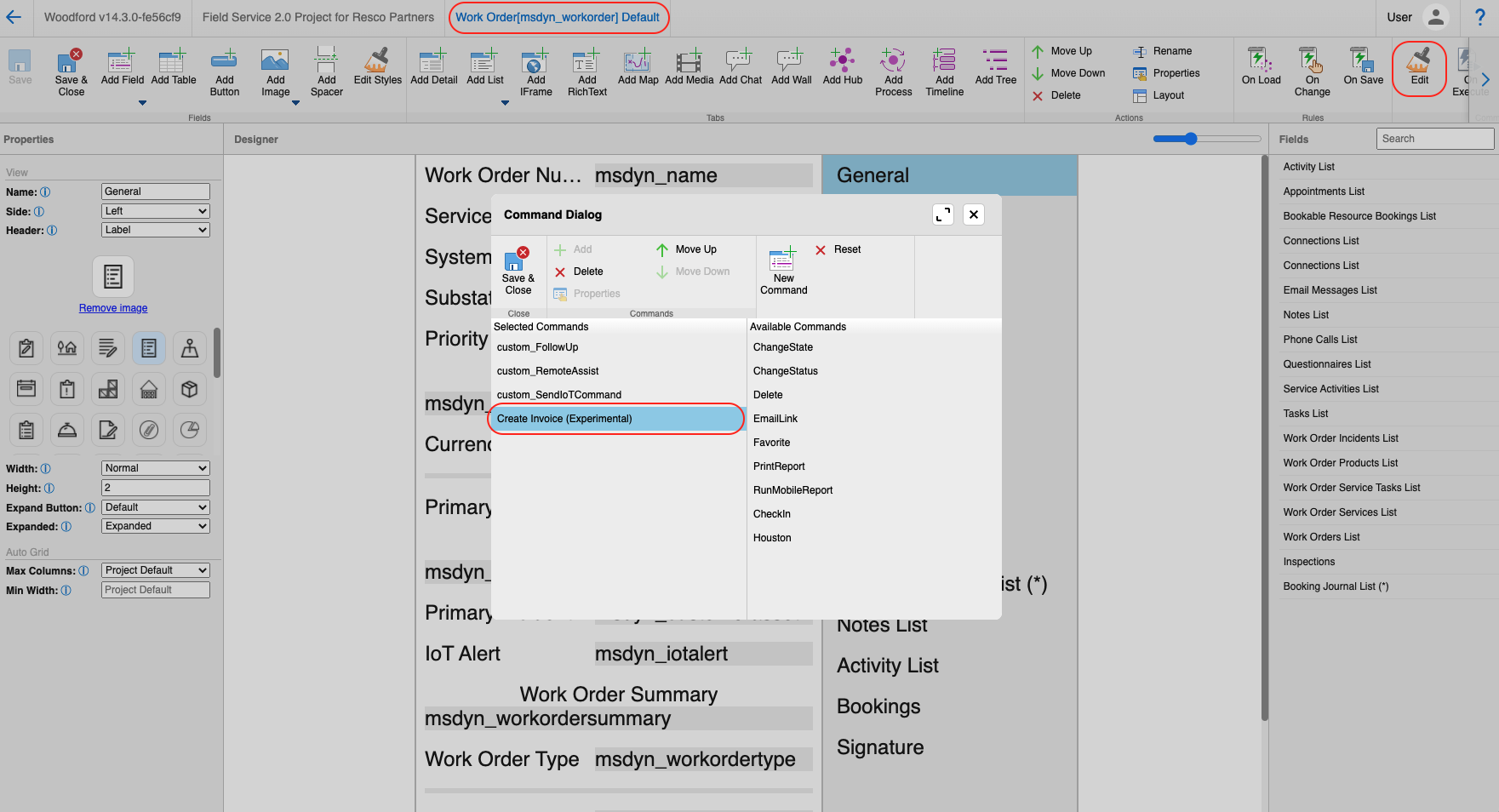

Create Invoice on WO form:

Create invoice command on work order form.png

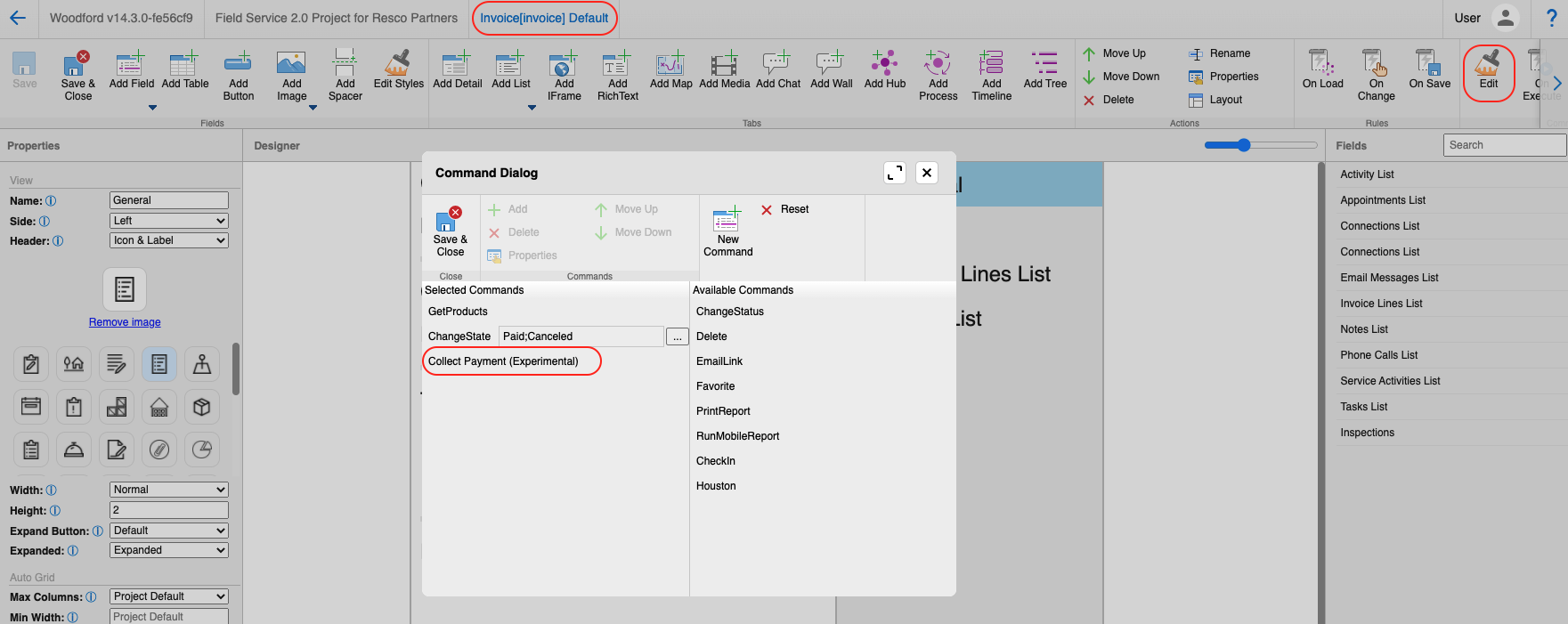

Collect Payment on Invoice form:

Collect payment command on invoice form.png

Payment in action

After doing this, you're all set up to collect payments after service. In the mobile app, you work with the Work Order form. When you add used services and products on work order, these items will get into the invoice after you've selected the Create Invoice command.

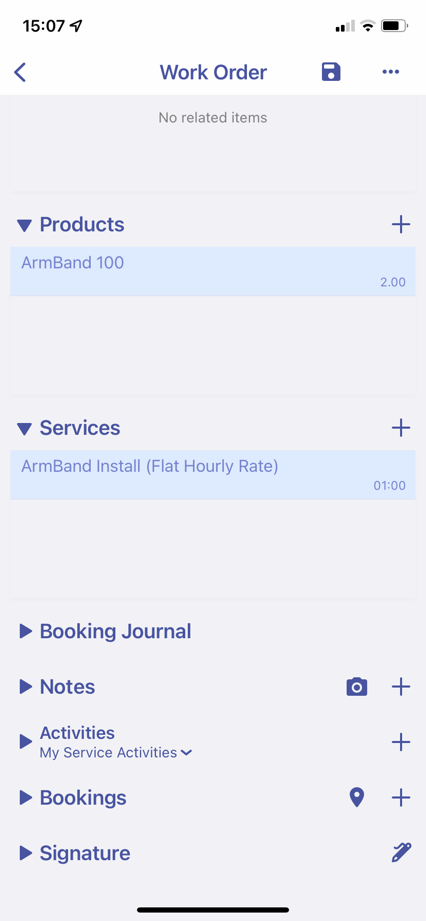

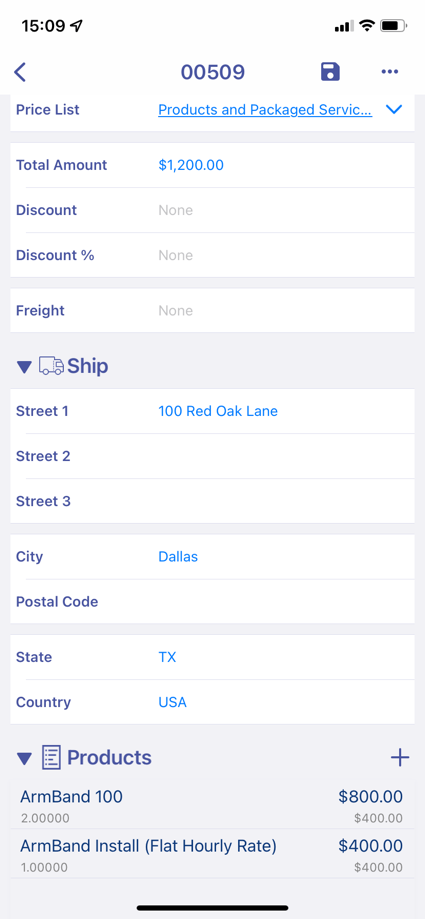

Work Order with Products & Services, Invoice

Stripe - work order.png Stripe - invoice.png

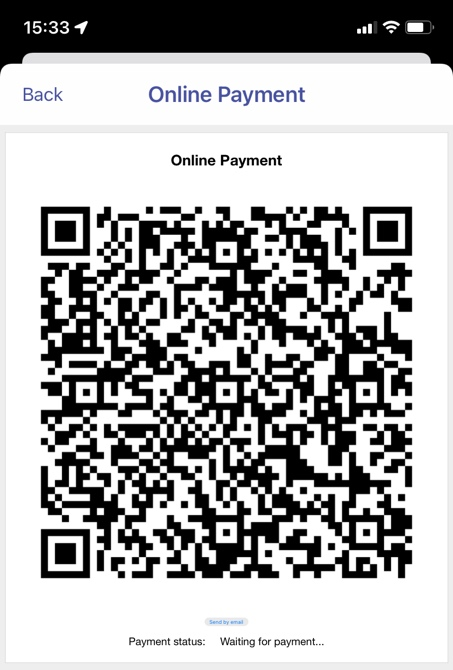

On the invoice form, simply use the Collect Payment command. A QR code with the payment link appears on the technician's device. You can also send the payment link via email.

Stripe - payment qr.png

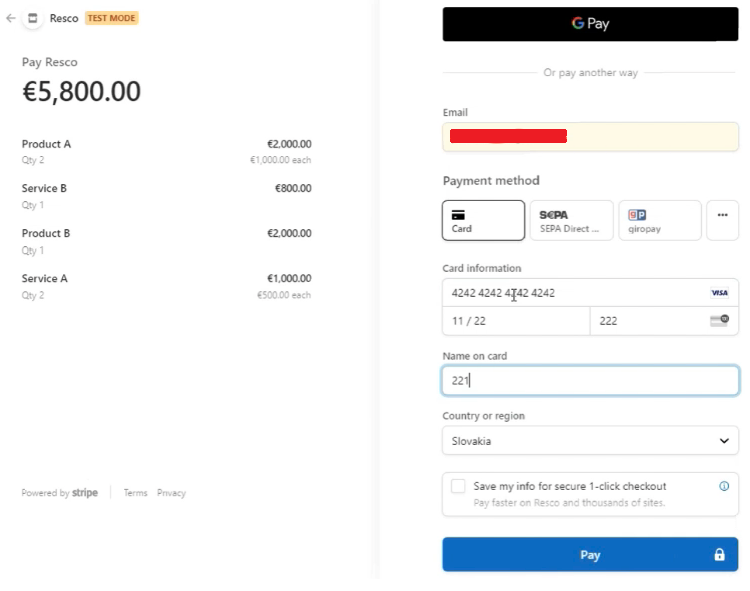

Customers can scan the QR code (or open the link from email) on their device to reach the payment confirmation page:

Stripe - pay.png

I'm interested

Please contact your business development manager at Resco for more information.
