Microsoft Dynamics is a line of enterprise resource planning (ERP) and customer relationship management (CRM) software applications.

Microsoft Dataverse is the cloud-based database engine on which Dynamics and other solutions are based.

Dataverse and Dynamics can benefit from tight integration with Resco platform, gaining access to powerful and fully customizable mobile applications that can work with your organization's data, even offline.

Note Microsoft product names are changing rapidly. On this wiki and possibly elsewhere in Resco communication, when talking about "Dynamics," we are referring to:
  • Microsoft Dataverse-based cloud solutions such as Dynamics 365 Field Service
  • plain Dataverse without Dynamics apps
  • older Dynamics on-premises installations

Integration schemas

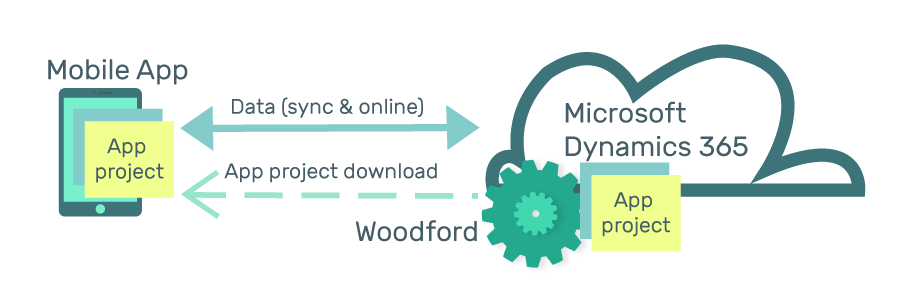

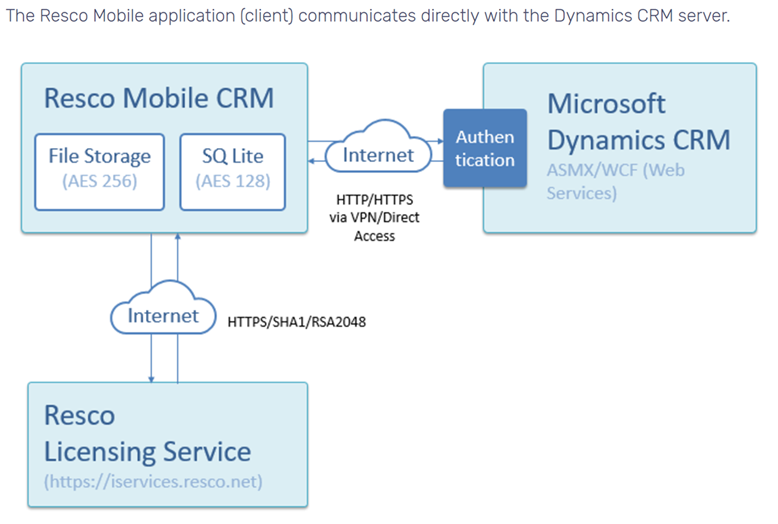

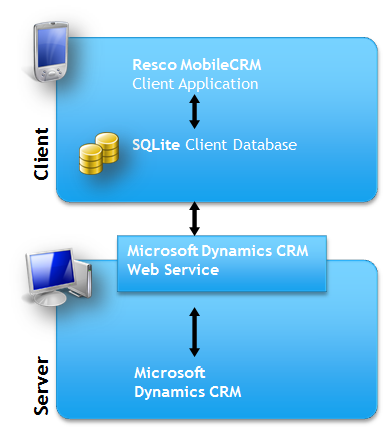

Integration schemas:Resco - Dynamics architecture Integration schemas:Dynamics_diagram Integration schemas:Dynamics architecture

Getting started

To start using Resco for Dynamics, you have to add Woodford to your Dynamics server. See Installing Woodford on Dynamics for further instructions.

To verify that the Resco solution was installed successfully, and to manage the solution, go to Settings > Solutions and search for "Woodford".

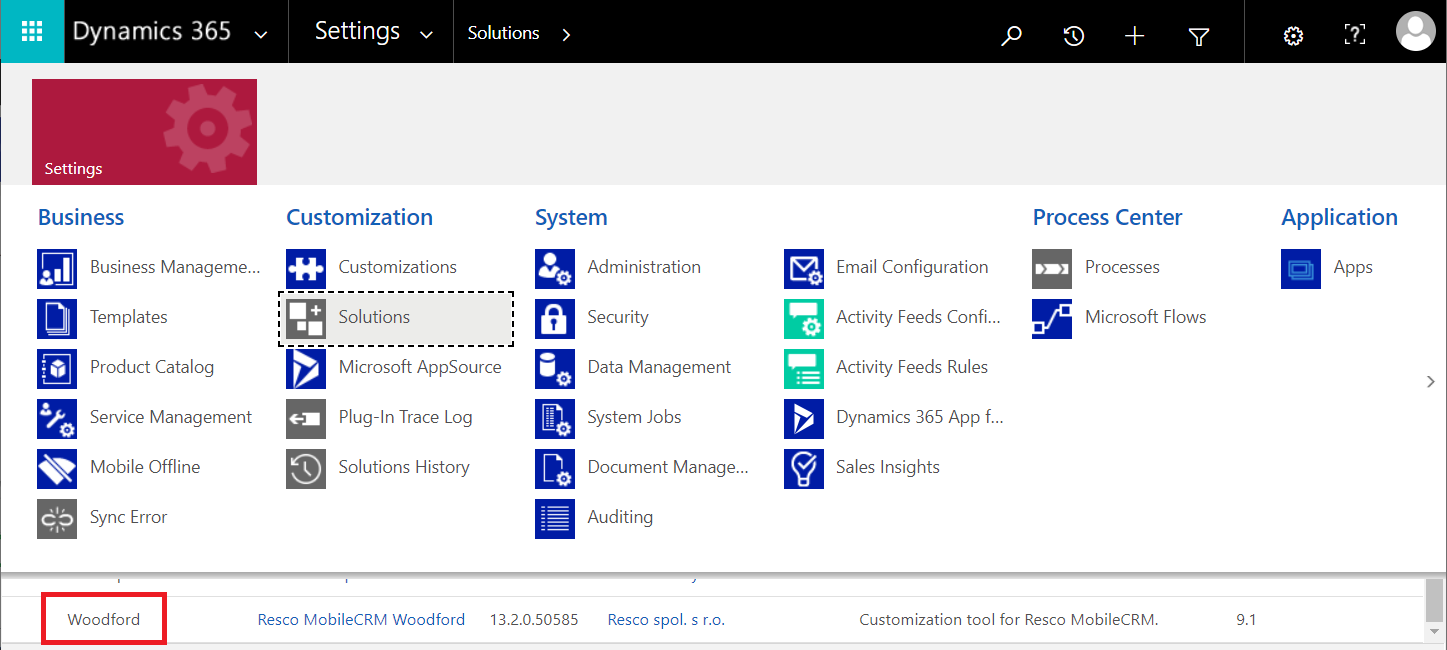

Installed resco solution on dynamics

Resco functions on Dynamics

By installing Woodford, you can now access additional tools from your Dynamics server. In the list of published apps, search for Resco Suite:

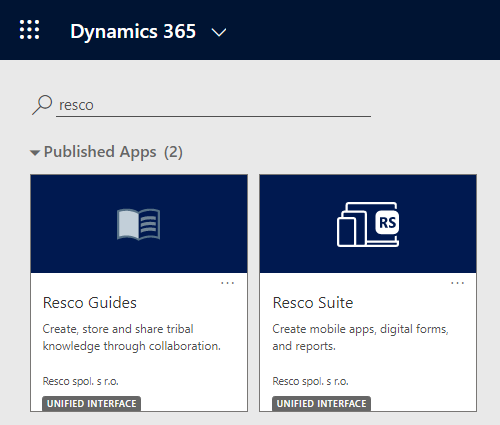

Resco functions on Dynamics:Resco suite app

You can then access the different Resco features:

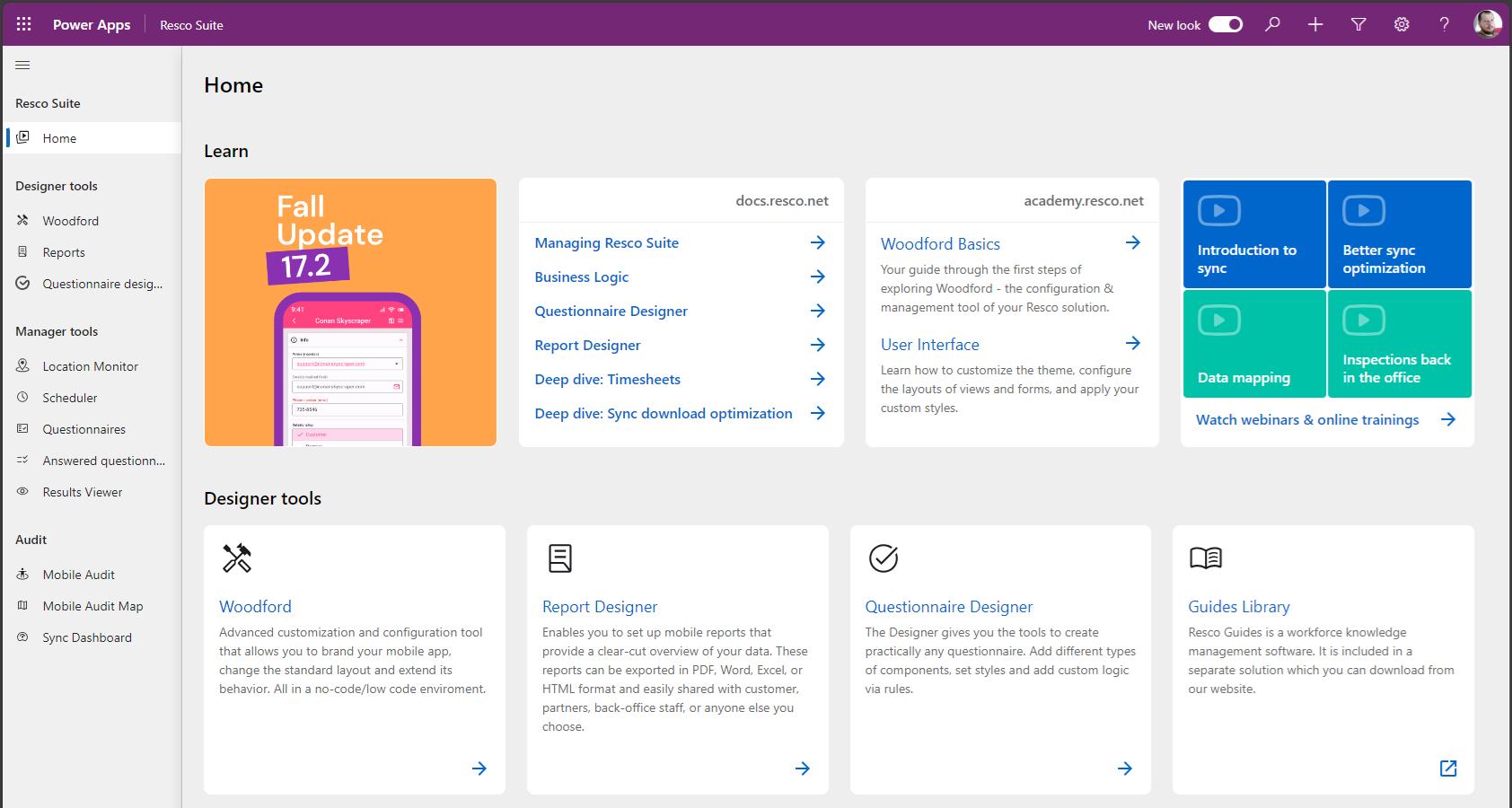

Resco functions on Dynamics:Resco features in dynamics

  • Woodford: Customization and configuration of Resco mobile application directly from your web browser.
Questionnaire Designer: Questionnaire building and customization tool.
Dashboard: Visualize and evaluate data collected from the questionnaires.
Schedule Board: Assign appointments to users.
Result Viewer
Mobile Auditing Map: View transactions across records and users on a map.
Mobile Auditing Records: View a chronological list of transactions across records and users.
  • Sync Dashboard: Monitor synchronization details of your users and devices.

Woodford registration and first publish

  • When you start Woodford for the first time, you have to register. The information provided is later used for licensing.
  • When you publish an app project for the first time, this is when your Resco trial actually starts.

App projects

App projects are customized versions of Resco mobile application dedicated to a particular set of users. Or more precisely, the application remains the same, but each project may have a different set of data and functions available. For example, your mobile sales team may need easy access for showcasing products and creating up new orders, field technicians may need instructions that guide them through the process of a maintenance inspection, and their managers can be interested in seeing the aggregated data or monitor the location of their staff on a map in real time.

Resco on Dynamics comes with a set of default project templates designed for concrete scenarios (for example, mobile sales or inspections) and these can be further customized using the Woodford tool, or you can design your own app project from scratch.

Microsoft Dataverse

Resco is fully compatible with Microsoft Dataverse, formerly known as Common Data Service (CDS). Most of the default app projects shipped with Woodford are tailor-made for Dynamics Sales or Field Service. However, the Inspector app project is fully compatible with a plain Dataverse organization without any Dynamics extras.

Mobile apps

Resco offers several mobile apps that understand app projects and allow you to work with your Dynamics data. To get started, download any of the app and connect to Dynamics. If you're not sure which app to download, get the classic Resco Mobile CRM.

Users log in to the Resco app using their Azure AD account. The app connects to Dataverse via standard web services. Depending on the user and the user's role within the organization, the app downloads a customized version of the app project along with a subset of CRM data. No middleware is used.

OAuth2 authentication

To increase security, Microsoft has deprecated older authentication methods in favor of multi-factor authentication (the final deadline was April 2022).[1] This impacts how app users sign in to Resco mobile apps and also external projects and location tracking.

Resco mobile apps

Before you can use the OAuth2 authentication method to connect Resco Mobile CRM with Dynamics 365/CRM Online, the app must first be added to the Microsoft Azure Active Directory. Azure Active Directory is used to verify that the application is permitted to access the business data stored in the Dynamics 365/CRM Online tenant. To grant global consent for all users to access the data, use the following link. However, you need to be a Global Administrator of your tenant to issue a global consent. It’s not enough to have only a System Administrator role in Dynamics 365/CRM Online.

Additionally, all app users that connect to their Resco mobile apps as Standard User must switch to OAuth2 instead.

See this blog post for more information. Blog

External projects, location tracking

The deprecations of Microsoft impact how external projects and location tracking authenticate. Instead of legacy login using WS-Trust, all customers must switch to OAuth using ROPC flow. [1] (Multi-factor authentication is not suitable for this use case.)

However, in order to use OAuth, users must grant their consent. There are two types of consent:

  • individual consent for a particular user
  • admin consent (organization-wide)

For external projects and location services, individual user consent is sufficient.

Consents can be further limited by scopes. In these cases, consent is only required to access Dynamics. The scope is https://{hostname}/user_impersonation, for example, https://resco.crm4.dynamics.com/user_impersonation. As {hostname}, use the hostname of your Dynamics instance.

There are several ways how consent can be granted:

  • You can synchronize your Resco Mobile CRM app with this account. However, this will grant consent with more scopes than required for the external users or location tracking scenarios.
  • A simpler way is to open the following link in a web browser, log in, and grant consent in that way. Go to https://login.microsoftonline.com/common/oauth2/v2.0/authorize?client_id=a116bf70-75fe-41c2-9f9f-7f3d0faff4bb&response_type=code&redirect_uri=https%3A%2F%2Flogin.microsoftonline.com%2Fcommon%2Foauth2%2Fnativeclient&scope=https%3A%2F%2F{hostname}%2Fuser_impersonation&prompt=consent. Make sure to replace the {hostname} with your Dynamics hostname. Some organizations don't allow individual user consent; in that case, you must log in as a global admin and grant consent on behalf of your organization.

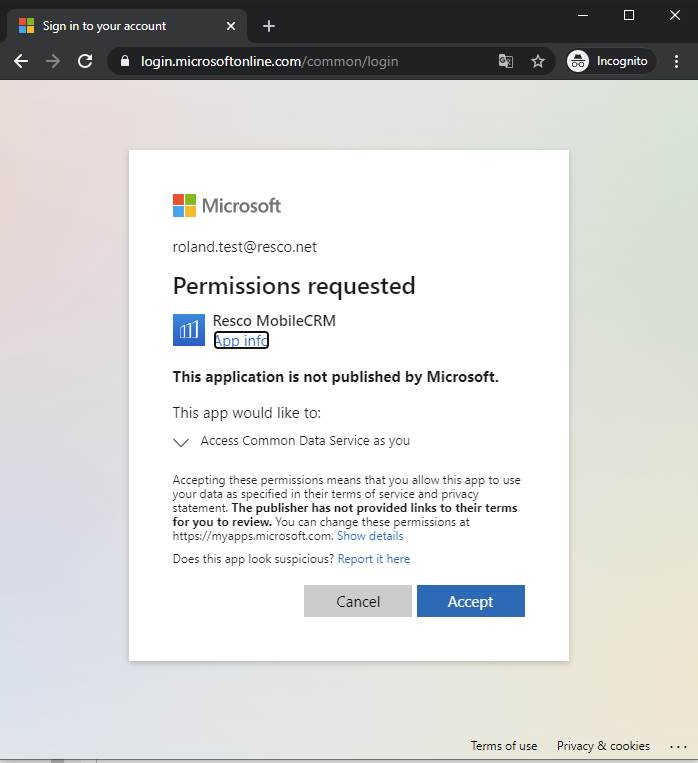

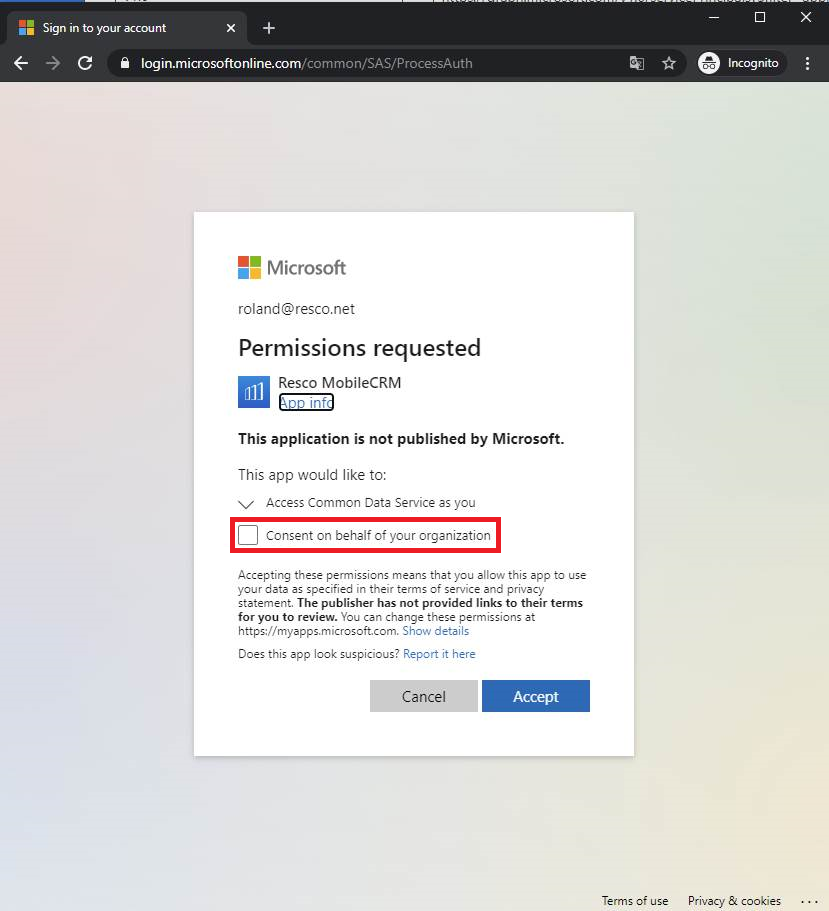

    OAuth2 Dynamics authentication:Consent individual OAuth2 Dynamics authentication:Consent on behalf
  • There's also a direct link for admin consent. In this case, you have to log in as a global admin. As your tenant ID, use either domain name or GUID; and also use the correct Dynamics hostname: https://login.microsoftonline.com/{tenantID}/v2.0/adminconsent?client_id=a116bf70-75fe-41c2-9f9f-7f3d0faff4bb&response_type=code&redirect_uri=https%3A%2F%2Flogin.microsoftonline.com%2Fcommon%2Foauth2%2Fnativeclient&scope=https%3A%2F%2F{hostname}%2Fuser_impersonation.

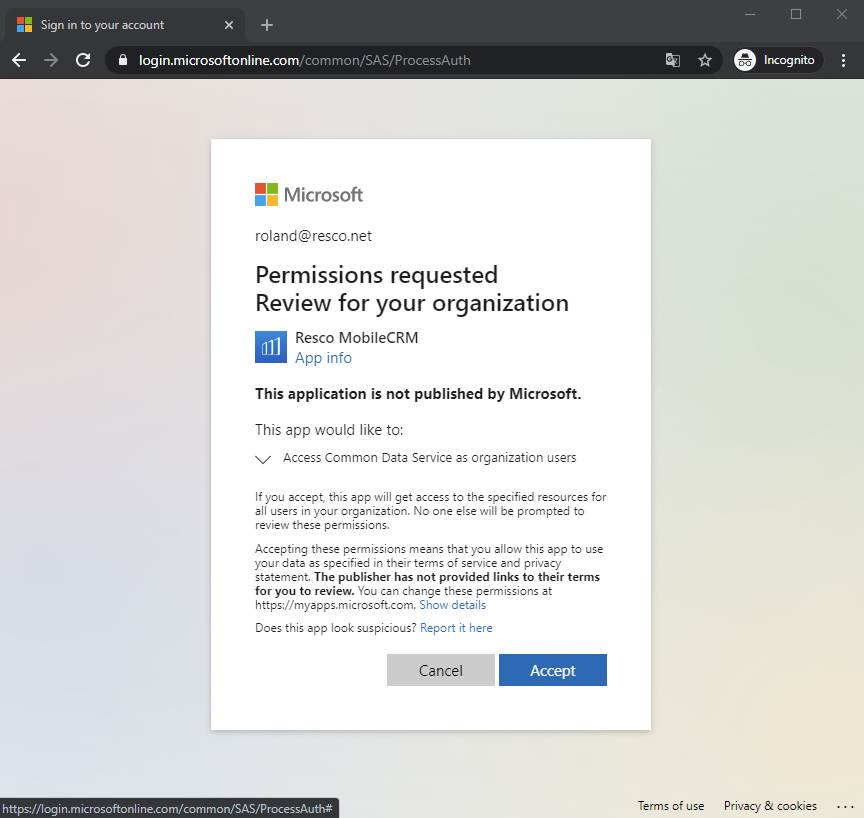

    OAuth2 Dynamics authentication:Consent admin
  • It is also possible to grant consent using Microsoft Graph web API. If you are curious about this method, contact Resco support.


As a fallback solution, when other forms of Azure user consent inexplicably fail, some customers have reported success when manually assigning user accounts to enterprise application. See Azure documentation for more information.

Virtual tables

Virtual tables enable the integration of data residing in external systems by seamlessly representing that data as tables in Microsoft Dataverse. Since release 16.0, virtual entities can also be used in Resco mobile apps. See Virtual table for details.

File columns

In release 16.0, we have added basic support for File columns. See File column for more information.

OData v2.0 deprecation

No action is needed.

The 2023 deprecation of the OData v2.0 services affects the REST endpoint. Resco makes use of the SOAP endpoint. At this time, no date has been announced for removing that endpoint.
